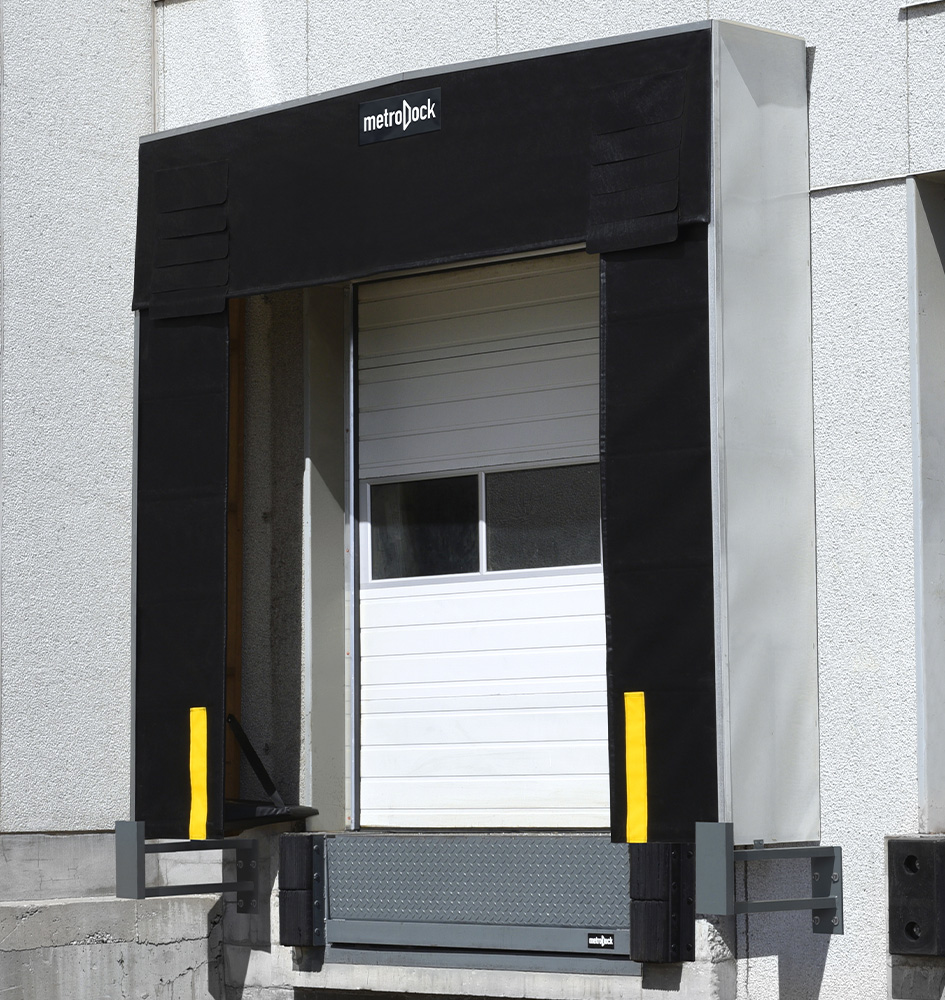

S40 – Stationary Truck Shelter
The Metro Dock Stationary Truck Shelter is constructed of flexible vinyl fabric to wrap around the truck sides creating an unobstructed opening for full access to the interior of the trailer.
Specifications
- For openings up to 10’ wide x 10’ high
- Two side units 126” high x 24” wide x 24” projection
- One raked head curtain 138” wide x 24” projection x 36” drop
- Seals trailer heights 144” – 162” on a 48” dock height
- Pleats allow for 20” depression to the bumper
- 24″ Yellow guide stripes
- Double stitching on all seams
- Aluminum trim covering all exposed edges (where applicable)
- Pressure-treated lumber frame
- Bottom pads with “NO STEP” decal
- 30” protective steel guards
Options
- Full height guide stripes
- Steel frame (painted / galvanized)
S41 - Soft Sided Truck Shelter
The Metro Dock soft-sided truck shelter uses flexible vinyl to seal around truck sides, providing full trailer access.
Specifications
- For openings up to 10’ wide x 10’ high
- Two side units 126” high x 8” wide x 24” projection
- One raked head curtain 138” wide x 24” projection x 36” drop
- Seals trailer heights 144” – 162” on a 48” dock height
- 24″ Yellow guide stripes
- Double stitching on all seams
- Aluminum trim covering on all exposed edges (where applicable)
- Steel frame (painted)
- Bottom pads with “NO STEP” decal
Options
- Steel frame (galvanized)
S90 – Water Guard
The Metro Dock Water Guard is a canopy application that can be mounted above existing head pads, curtains, or by itself. It seals against the roof of the trailer with the sweep pad and deflects rain to the sides, keeping workers safe and your product dry.
Specifications
- 123” wide x 24” projection x 12” storage curtain
- Sweep pad 6” foam pad x 24” drop
- Double-layered vinyl on face of sweep pad
- Solid 40 oz. vinyl wear pleats across face
- Steel frame side supports add strength and stability
- Yellow guide stripes
- Double stitching on all seams
- Aluminum trim covering all exposed edges (where applicable)
- Kiln-dried pressure-treated lumber frame construction
Options
- Custom applications
- Custom fabric colours available
- Steel frame construction
- Hot dipped galvanized
