Mechanical Leveler
DOCK LEVELERS
Mechanical Leveler

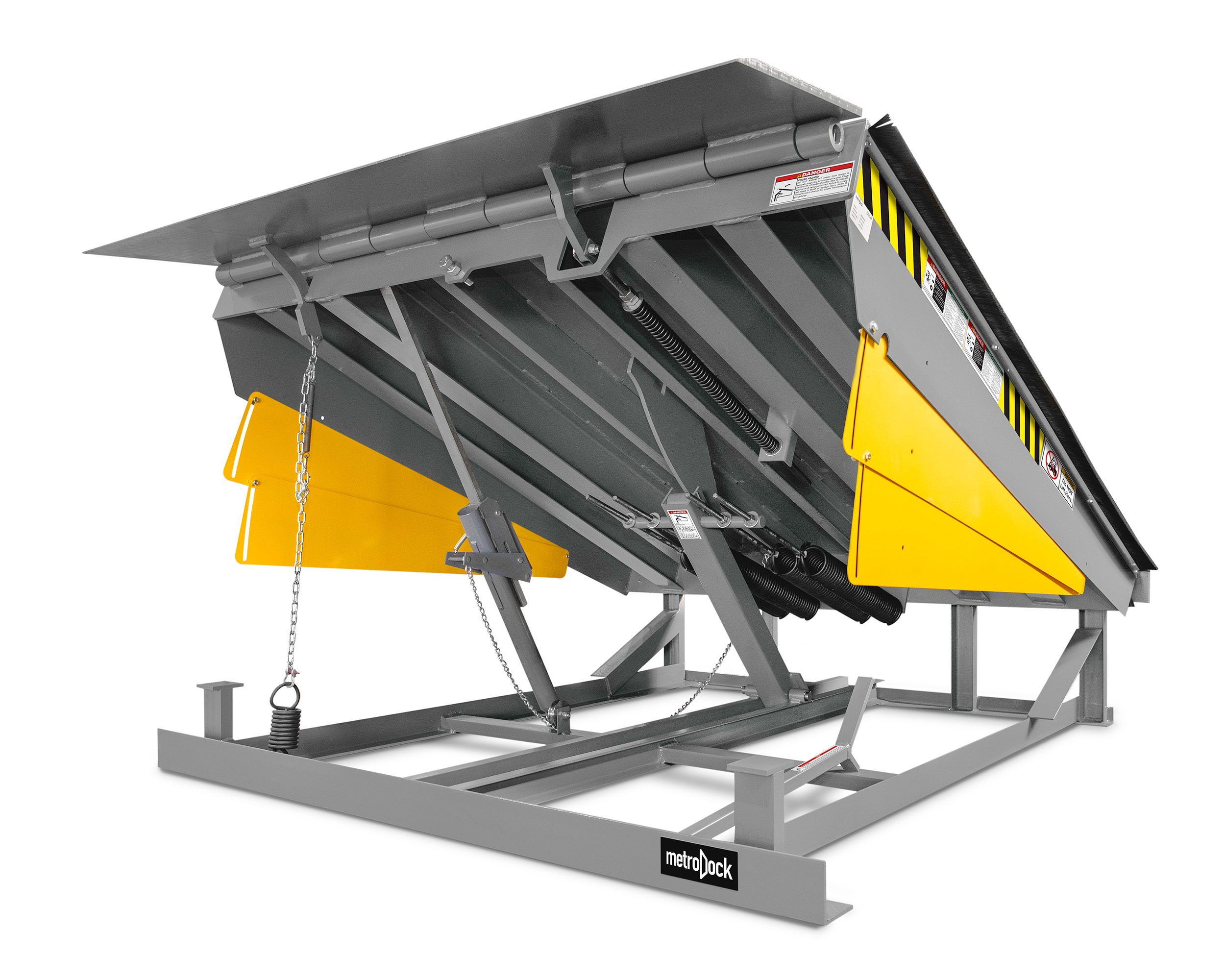

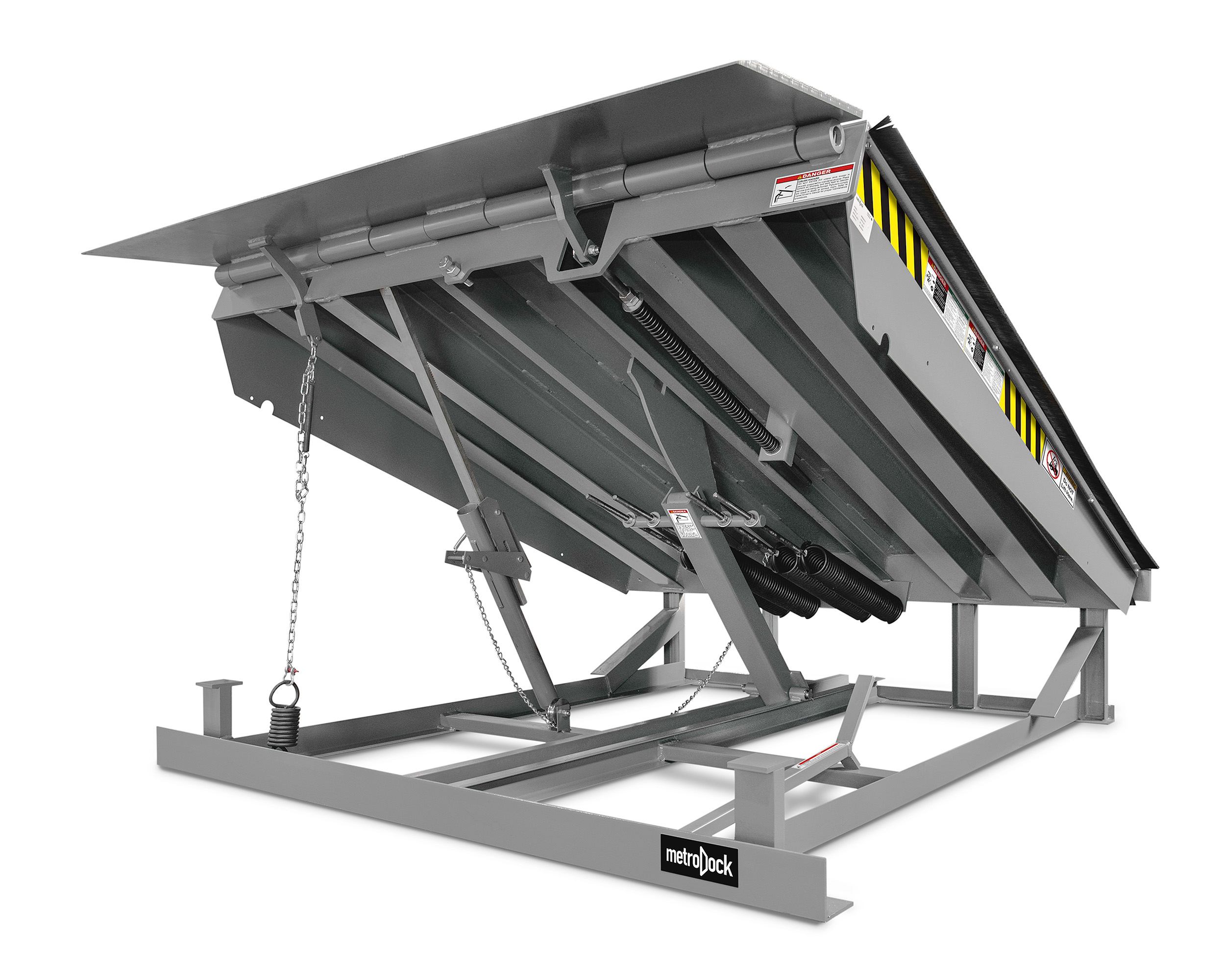

Metro Dock’s Mechanical Dock Levelers offer an economical, safe solution for basic loading dock applications. Manually operated and easy to use, they activate with a pull of the release chain at the rear of the deck, allowing the dock to rise and the lip to extend. Once in position, the leveler can be lowered onto the truck bed for safe loading or unloading. Equipped with a reliable deep-toothed ratchet hold-down system, these levelers provide secure traction, enhancing safety and reducing maintenance.
PRODUCT DOWNLOAD
TECHNICAL INFORMATION SHEETS
PIT DETAIL DRAWINGS
Specifications
- 30,000 lb. capacity
- Formed beam construction
- 16″ reach lip
- Weather seals – 3 sides
- Deep tooth ratchet hold-down
- Working range toe guards
- Maintenance stand
- Rear hinge tilt
Features
- Economical: Designed to be a budget-friendly solution without compromising on quality for basic loading dock applications.
- Easy to Use: Manual operation makes it effortless to operate, ensuring smooth loading and unloading processes.
- Solid Construction: Formed beam and I-beam constructions assure durability, while heavy-duty extension springs enable smooth operation under heavy loads.
Benefits
-
Cost Savings: An economical solution providing businesses save on initial investment and long-term maintenance costs.
-
Efficiency: Enhance productivity by streamlining the loading and unloading process with a simple pull of the release chain.
-
Safety: Ensure operator safety with the reliable deep tooth ratchet holddown system, minimizing slippage risks during operation.
Options
- Up to 50,000 lb. capacity
- I-beam construction
- 18″ and 20″ reach lip
- Full range operating toe guards
- Hold-down with auto-reset on float spring
- 3-wheel forklift bracing
- Brush weather seal – 3 sides
- Hot dipped galvanized
- Additional options available
MD Series:
-
Formed Beam Construction
-
Available in 30,000 lb. and 35,000 lb. capacities
MDI Series:
- I-beam construction
- For high-traffic and heavy-duty applications
- Available in 40,000 lb. and 50,000 lb. capacities
